Grp Panel Water Tank
Why Choose GRP Panel Tank from Pipeco Malaysia
- 100% Quality GRP Tank supplier in the UAE.
- Unrivaled technical workforce
- Provide the best GRP sectional water tank.
- 100% Quality Certified
- State of the Art Design
- ISO-certified fiberglass company in UAE
- Ontime Delivery
- Quality certified product
- 24/7 Technical support
- Unbounded material stock
- Proper protection from direct sunlight, all insulations come outside the GRP panel tanks.

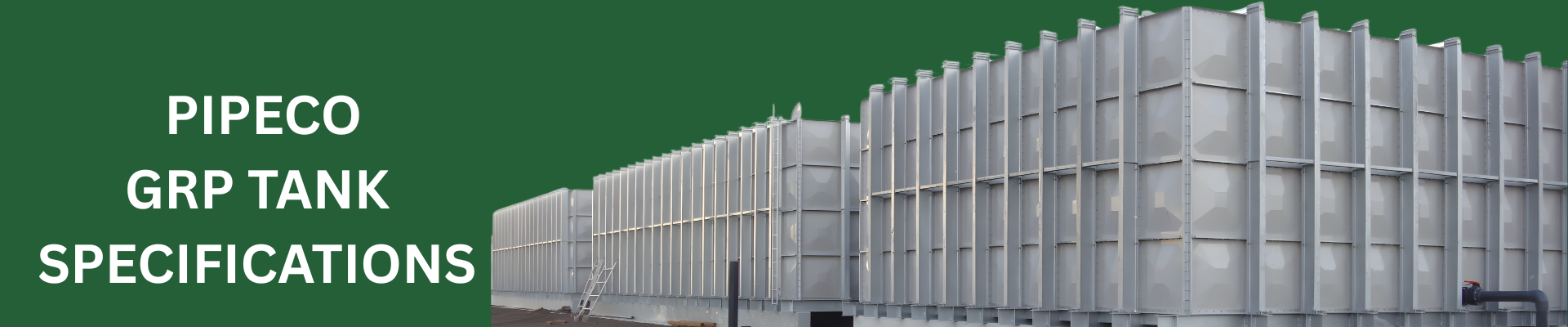

GRP Panel Tank Specifications
Standard :
Singapore Standard SS245: 2014, MS 1390 : 2010 similar to British Standard BS 7491
Part 3:1994 and BS EN 13280:2001
Materials :
Sheet Moulding Compound (SMC) consists of :
Resin – Isophthalic unsaturated polyester resin conforming to BS 3532 specification
Fiber Glass – Low alkali fibre glass conforming to JIS R3411 to R3417 or BS 3396, BS 3496 and BS 3749 specifications
Manufacturing Process :
Hot pressed SMC compression moulding
Tank Structural Support :
Tie-rod System:
External:
Hot Dipped Galvanised Steel
Internal:
SS304 Tie-rod, Optional SS316
Roof Support : PVC/ABS pipes with GRP roof panel stiffener
External Braced System :
External:
Hot Dipped Galvanished Steel
Internal
None (metal free inside, non-partitioned tank only)
Roof Support: PVC Poles with GRP roof panel stiffener
Sealant :
Non toxic PVC foam/EPDM Rubber
Bolt, Nuts, Washers :
External:
– Standard : Hot Dipped Galvanised Steel
– Optional : SS 304/316
Internal:
– Standard : SS 304 (In-contact with water)
– Optional : SS 316 (In-contact with water)
Roof :
-Standard: Hot Dipped Galvanised Steel
-Optional: SS 304/316
Ladder :
External:
– Standard : Hot Dipped Galvanised Steel, 300mm width
Internal:
– Standard : PVC or Aluminium, 300mm width
– Optional : GRP or SS 304/316, 300mm width
Water Level Indicator :
Standard : Reversed Reading Mechanical Ball Float Type (Cat & Mouse)
Optional : Direct Reading Clear Tube Type
Nozzel Panel :
Pipe nozzles flange not inclusive
Flat panels will be provided on request
*Note: Specification may vary according to client’s requirement.
GRP Panel Design
GRP Panel Design
Skid Base Specifications
Internal Tie-Rod Design
External Raced Design
GRP Panel Design
By encapsulating a 50mm layer of rigid polyurethane foam, Pipeco pre-insulated panel could maintain the desired water temperature stored inside the tank under extreme temperature condition. Pipeco pre-insulated panel could be selected for water storage where there is a need to stabilize the temperature against extreme heat or freezing conditions to prevent dew formation.
PERFORMANCE OF GRP PANELS

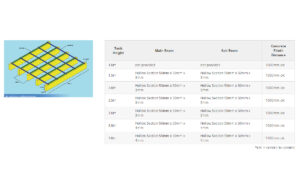

Skid Base Specifications
Skid Base Specifications for GRP Sectional Water Tank
*PIPECO reserves the right to provide alternate skid base designs
PIPECO recommends an ideal concrete plinth size of 300mm (W) x 500mm (H), with a maximum variance in height of not more than 2 mm.

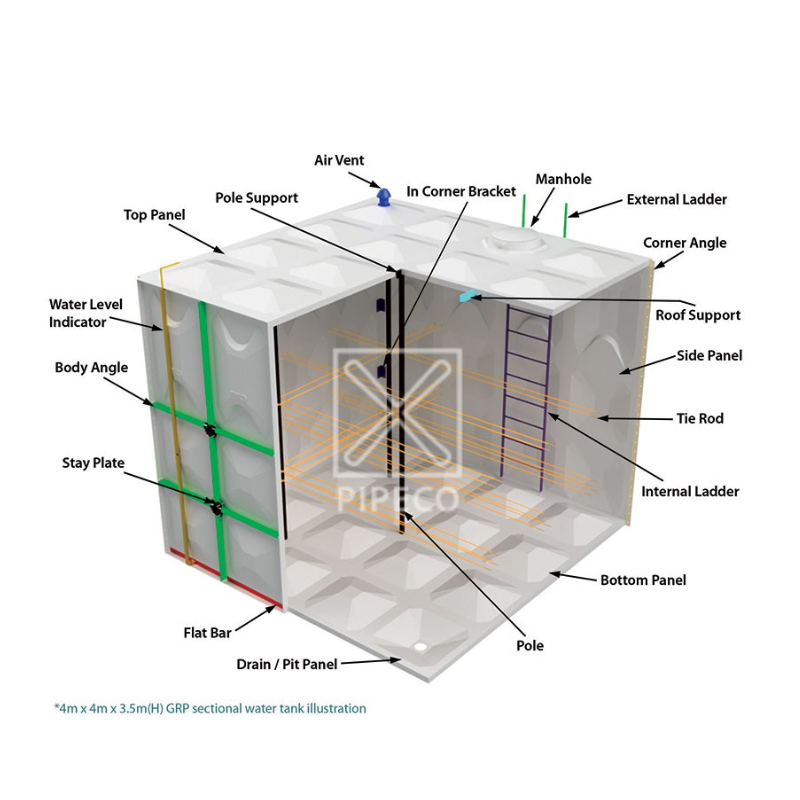

Internal Tie-Rod Design
Overview of Internal Structural Support for GRP Sectional Water Rank

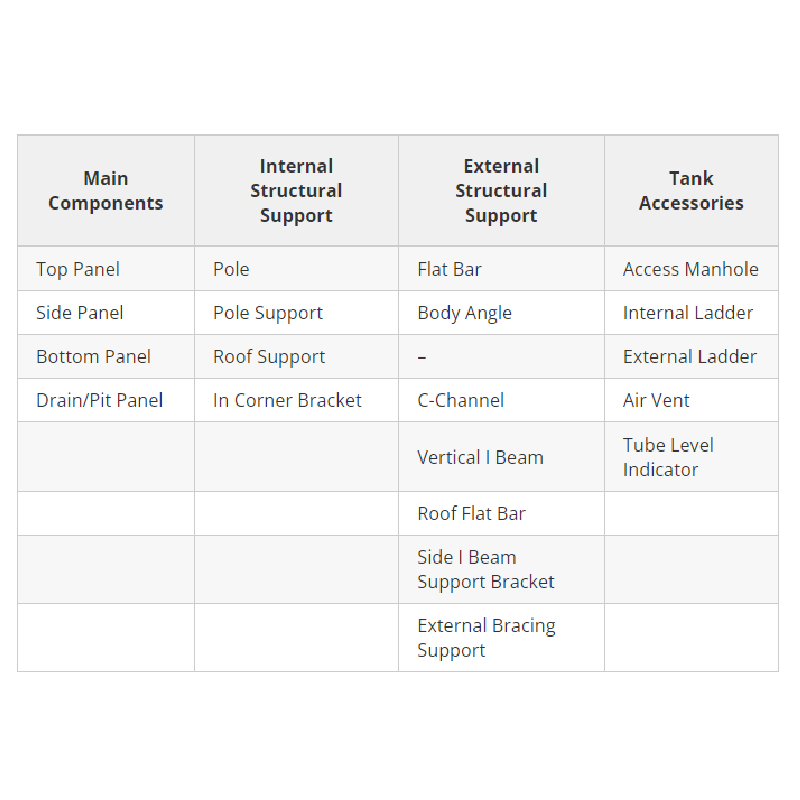

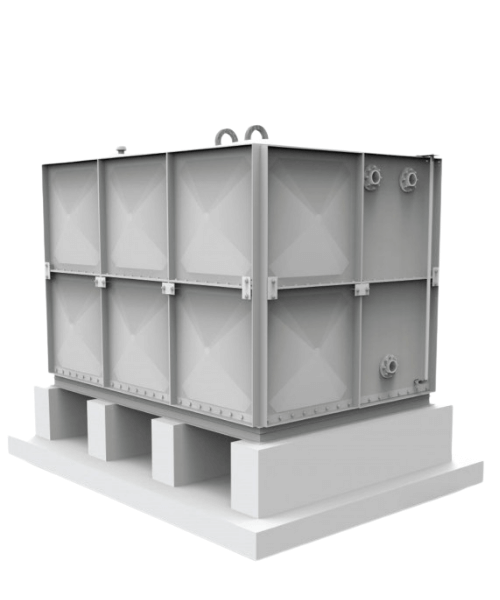

PIPECO GRP sectional water tank is constructed with bottom, side and top panels, completes with external and internal structural reinforcement and necessary tank accessories to facilitate water storage.

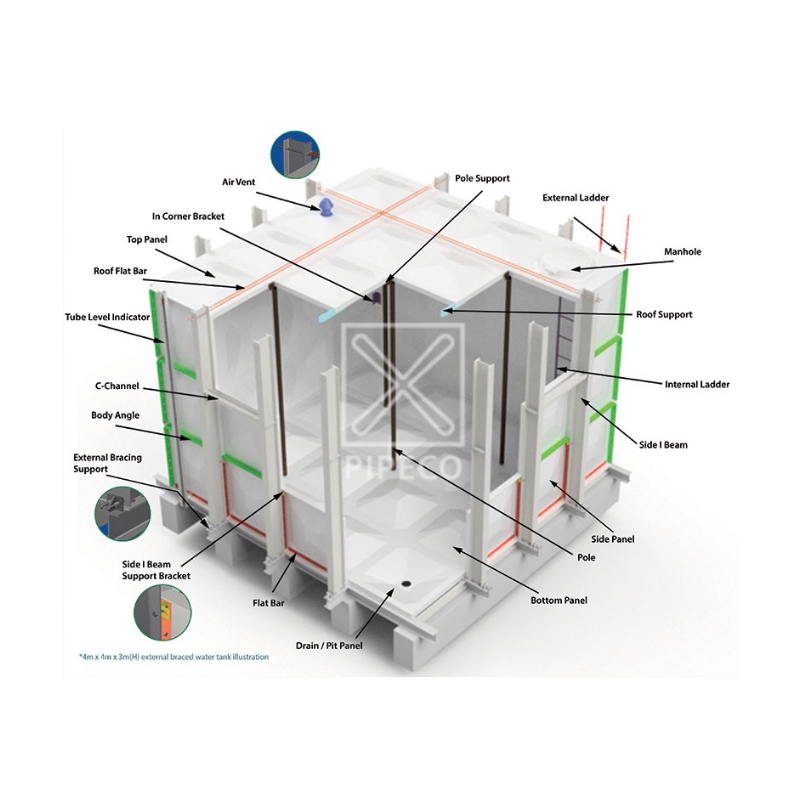

External Raced Design
Overview of External Structural Support for GRP Sectional Water Tank
Pipeco GRP Tank Quality Assurance
FAQ of GRP Tanks
Are GRP tanks safe for storing drinking water?
Yes,water tanks from Pipeco Malaysia are manufactured to comply with international hygiene standards, ensuring they are safe for potable water storage.
What sizes are available for GRP tanks?
Pipeco Malaysia provides GRP tanks in various sizes, ranging from small-capacity tanks for residential use to large-capacity tanks for industrial and commercial applications. Tank sizes can be customized based on specific requirements.
How long do GRP tanks last?
With proper installation and maintenance, GRP tanks have a lifespan of 20 to 30 years or more. Their resistance to corrosion and environmental factors ensures long-term durability.
What maintenance is required for GRP tanks?
- Inspect panels, bolts, and gaskets regularly.
- Clean the tank interior periodically to prevent algae or sediment buildup.
- Check for leaks or damage to ensure optimal performance.
What applications are GRP tanks suitable for?
Residential Buildings
Commercial Spaces
Industrial Use
Firefighting Systems
Agriculture
0+
Years Of Experience
0+
Technical Strength
0+
GRP Tanks Delivered
0
Years Of Warranty
Get Expert Advice for Your Project
Choosing the right GRP water tank is essential for water safety and long-term performance. Whether you need an insulated GRP water tank for outdoor installation or a non-insulated GRP tank for indoor use, our team is here to help.
👉 Contact GRP PIPECO Tanks Trading LLC today for expert guidance, competitive pricing, and reliable water storage solutions across the UAE.
